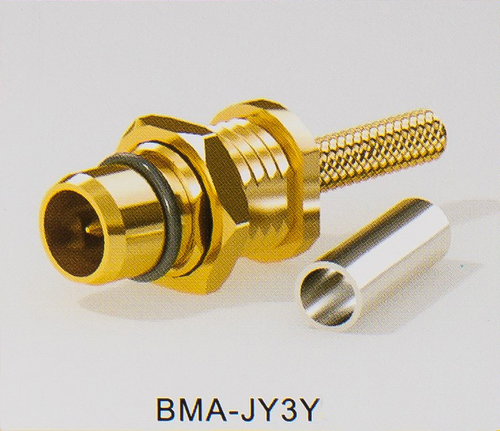

BMA RF Coaxial Connector

BMA RF Coaxial Connector
BMA RF Coaxial Connector
Product Code : BMA-JY3Y
Brand Name : Hoan
Product Description

We are considered as one of the leading manufacturers and exporters of a wide range of BMA Connector. It is an effective solution for high-frequency performance rack and panel RF applications. We manufacture these connectors in compliance with industry standards using supreme quality materials using highest quality materials sourced from renowned vendors in market. High in demand in aerospace, defense, telecommunication and networking, this BMA RF Connector is stringently tested on various standard quality parameters.

Features:

  • Excellent dimensional tolerance
  • Smooth finishing
  • Anti- rust

Key Performance

  • Temperature range: -65~+125 degrees Celsius
  • Insulation resistance: >=5,000M Ohms
  • Characteristic impedance: 50 Ohms
  • Dielectric withstanding voltage: 1,000V
  • Frequency range: 0~18GHz
  • Contact resistance:
  • <=0.003 Ohms (Center conductor)
  • <=0.002 Ohms (Outer conductor)
  • VSWR: <=1.15+0.012F

Dimensions:

  • L: 23.1mm
  • Cable type: SFF-50-1.5-1 or SYV-50-2-1
