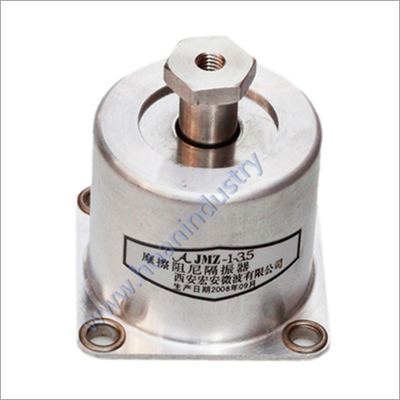

Friction Damping Isolator

Friction Damping Isolator
Friction Damping Isolator
Product Code : 18
Product Description

Friction Damping Isolator

As a major manufacturer and global supplier, we offer Friction Damping Isolators that show excellent anti-vibration as well as anti-shock performance in all random directions. They show a perfect mix of particular friction disk and couple springs. They are known for broad working frequency, longevity and high & low temperature resistance. As a result, the Friction Damping Isolators are a perfect solution for a range of applications. We have different models for moderate to extreme conditions. Also, they are complete in aspects like mechanical design, safety and installation.

Features & Benefits:

  • Provide great protection
  • Help extend the service life of the unit
  • Strong construction & proven design
  • Outstanding performance & moisture-proof

Technical Parameters

Model

Pz Direction Maximum Load (Kg)

Pz Direction Maximum Displacement under Load

Performance of Vibration Isolation

Anti Shock Performance

Resonance Frequency Hz

Working Temperature

Period of Validity

Use of Tern

JNZ-1 (c)-1.0

1

<2

Meet GJB180-16

30g 11ms Peak Response < 0.9km/S2

<15

-65+120

4

3

JMZ-1 (c)-1.0A

1

JNZ-1 (c)-1.5

1.5

JMZ-1 (c)-1.5A

1.5

JMZ-1-1.5

1.5

3 + 1.5

JMZ-1-1.5A

1.5

JMZ-1-2.0

2

2 + 1.5

JMZ-1-2.0A

2

JMZ-1-3.0

3

3 + 1.5

JMZ-1-3.0A

3

JMZ-1-3.5

3.5

JMZ-1-3.5A

3.5

JMZ-3-10

Technical Parameters

Model and Specification

Pz Direction Maximum Load (kg)

Pz direction Maximum Displacement under Load (mm)

Limit Displacement

Vibration Test

Impact Test

Resonance Frequency Hz

Working Temperature (oC)

Period of Validity YEARS

Use of Term Hours

Z Direction

Lateral

JMZ-3-10

10

< 2

+ 6

+ 6

Resonant Amplification Rate <2 No Damage

Half Sine Wave 15g 11ms 3 Axis 6 Direction Each 2 times A total of 12 times Peak Response G < 0.15Km/S2 No Damage

<25

-55 + 70

12

1500
