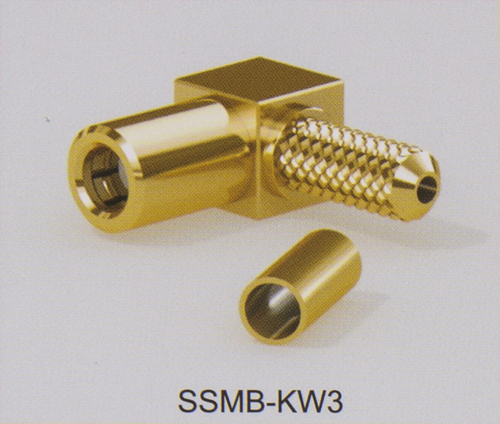

SSMB RF Coaxial Connector

SSMB RF Coaxial Connector
SSMB RF Coaxial Connector
Product Code : SSMB-KW3
Brand Name : Hoan
Product Description

Across the global market place, our company is recognized as the topnotch manufacturer and exporter of an extensive range of SSMB Connectors. We are offering these connectors to clients in all standard sizes to meet their individual requirements. These SSMB RF Connectors are used in a micro miniature footprint where it provides excellent electrical performance. We are offering these connectors to clients at reasonable prices.

Features:

  • Suitable for both flexible and semi rigid cables
  • Sturdy design
  • Snap-on interface for quick and easy installation

Key Performance

  • Temperature range: -55~+155 degrees Celsius
  • Insulation resistance: >=1,000M Ohms
  • Characteristic impedance: 50 Ohms
  • Dielectric withstanding voltage: 500V
  • VSWR:
    • <=1.22(0~1GHz)(Straight)
    • <=1.35(0~3GHz)(Straight)
    • <=1.50(0~1GHz)(Right angle)
    • <=1.63(0~3GHz)(Right angle)
  • Contact resistance:
    • <=0.005 Ohms (Center conductor)
    • <=0.0025 Ohms (Outer conductor)
  • Frequency range: 0~3GHz
  • Durability: 500 Cycles
  • Dimensions:
    • L: 11.5mm
  • Cable type: SFF-50-1.5-1 or SYV-50-2-1
