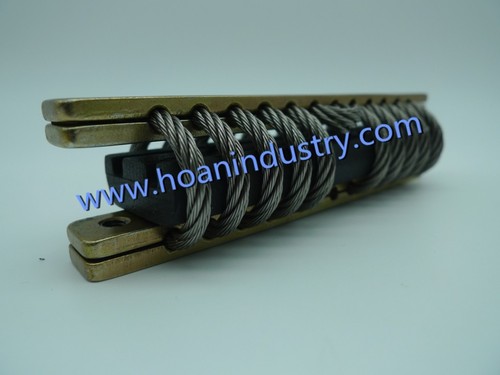

Wire Rope Isolators

Wire Rope Isolators
Wire Rope Isolators
Product Code : GN-60A
Brand Name : Hoan
Product Description

Wire Rope Isolators

Accredited with ISO 9001:2008c certification, we are occupied in manufacturing, exporting and supplying a qualitative range of Wire Rope Isolators. The provided isolators are manufactured by our deft professionals using topnotch quality basic materials with the aid of latest techniques. These isolators find their wide applications in industrial and military vehicles. To suit the specific demand of our patrons, the offered Helical Wire Rope Isolators can be availed from us in various specifications at industry leading prices.

Products Other Information:

  • Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.
  • Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.
  • Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.
  • Series GN helical wire rope isolators are the updated Series GX helical wire rope isolators.
  • Square column rubber insert is replaced by arched column rubber insert, which can avoid the plastic deformation, or even break of wire rope under the instantaneous strong shock, remarkably improving the vibration and shock isolation performance.
  • Besides having all functions and characteristics of Series GH and GX helical wire rope isolators, Series GN helical wire rope isolators feature the capacity of resisting impact, and low frequency lateral stability having been improved greatly meanwhile.
  • The load bearing range is from 1kg to 1t, which meets many kinds of requirements and demands from our clients and gets stable customers royalty after their launch into Chinese domestic market.

Key Features/Benefits

  • Metal bar & WR and rubber insert multi directional anti-vibration / shock mounts
  • High performance shock and vibration isolation
  • Exceptional reliability and long span life
  • High damping
  • Broad temperature range
  • Great adaptability / versatility
  • Custom configurations (material, size, plating, or number of loops, etc.) available upon request
  • Dimensionally accurate
  • Easy to install
  • Superior finish
  • Corrosion resistance

Technical Data of GN-60A helical wire rope isolator:

  • L (mm): 133
  • W (mm): 40
  • H (mm): 32
  • Distance of mounting holes (mm): 117
  • Max Dynamic Load (kg/N): 6.12 / 60
  • Material of Mount Bar: carbon steel
  • Material of Helical Cable: 304 stainless steel
  • Material of Insert: arched column rubber

Note: Special cable materials, special bar materials (stainless steel, titanium, finish plating) and special mounting configurations (inserts, thread types, clearance holes) to name just a few, are available upon request.
