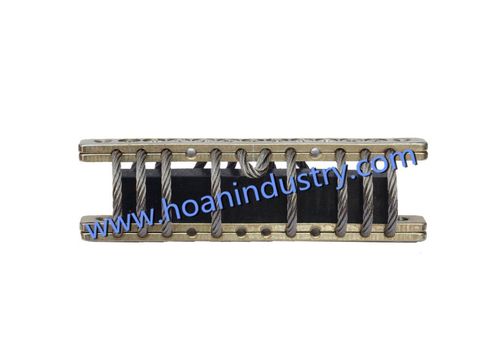

Wire Rope Vibration Isolators

Wire Rope Vibration Isolators
Wire Rope Vibration Isolators
Product Code : GX-30
Brand Name : Hoan
Product Description

Wire Rope Vibration Isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

Wire Rope Vibration Isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.

Series GX Wire Rope Vibration Isolators are the updated version of Series GH wire rope isolators after Chinese national military standard GJB-150 being issued. Series GX wire rope isolators have square column rubber insert which as a wonderful buffer can effectively prevent the yield failure of wire rope which is under the pressure of z-direction.

Besides of having all the characteristics and features of Series GH wire rope isolators, Series GX wire rope isolators have greatly improved shock resistance performance.

The dynamic load bearing range is from 1kg to 6kg, which meets many kinds of requirements and demands from our clients and gets stable customers’ royalty after their launch into Chinese domestic market.

Designed for restraining the interference of DC power cable, Series GX Wire Rope Vibration Isolators feature excellent common mode and differential mode filter performance, which have been widely using in many kinds of electronic equipments which have AC/DC, DC/AC, DC/DC switch converter or use DC as its power.

Key Features/Benefits:

  • Metal bar & WR and rubber insert multidirectional anti-vibration / shock mounts
  • High performance shock and vibration isolation
  • Exceptional reliability and long span life
  • High damping
  • Broad temperature range
  • Great adaptability / versatility
  • Custom configurations (material, size, plating, or number of loops, etc.) available upon request

Technical Data of GX-30 wire rope isolator:

  • L (mm): 55
  • W (mm): 26
  • H (mm): 21
  • Max Static Load (N): 30
  • Material of Mount Bar: Carbon Steel
  • Material of Cable: 304 Stainless Steel
  • Material of Insert: Square Column Rubber
